Turbines Escher Wyss EA 500
Bifuel
1.200 kWe
Ready to Ship
Specifications
- Reference
- UPP-T0011
- Type
- Turbines
- Fuel Type
- Bifuel
- Year
- 2007
- Condition
- Revised
- Rated Power
- 1.200 kWe
- Frequency
- 50 hz
- Year of Revision
- 2007
- Available quantity
- 1
Create a free account or log in to get started.
Description

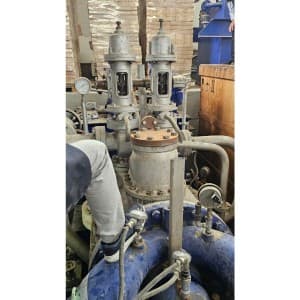

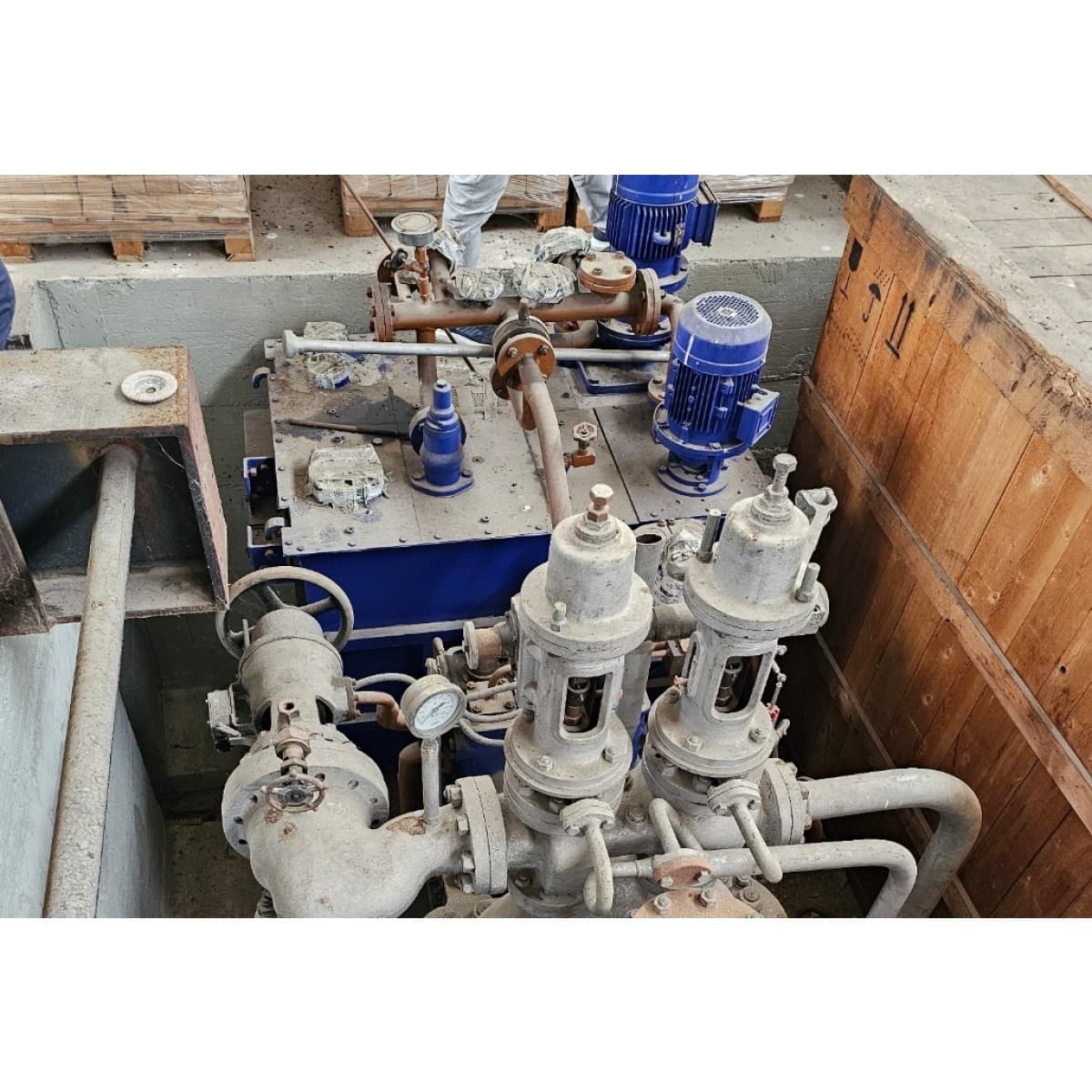

Turbine manufacturer ESCHER WYSS type EA 500 maximum power 1200 KW inlet steam pressure 36-s-45 ate inlet steam temperature 410-s-450 ° C maximum steam flow rate 12 T/h rotation speed 8750 g/1 derived steam pressure ata ± 25% extracted steam temperature approx. 230°C maximum bypass flow rate 11 T/hmaximum flow rate without bypass 5 T/h discharge pressure in surface condenser O, 055 ata GEARBOX manufacturer MAAG type GS 36 power 1200 KW. speed 8750/1500 rpm
ALTERNATOR manufacturer CEM power 1500 KVA voltage 400 V frequency 50 Hz cosfi 0.8 speed 1500 rpm class F IP 21
CONDENSER exchange specifications 80 m2 n° 4 passages circulation water temperature 15° C water flow rate 260 m steam flow rate 5000 Kg/h
